Product Description
OpenVox A810P is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.
A810P is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.
The A810P contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
A810P works with Asterisk®, Elastix®, FreeSWITCHTM, PBX in a Flash, trixbox®, YateTM and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
Target Applications:
Channel Bank Replacement / Alternative
Small Office Home Office (SOHO) applications
Small and Medium Business (SMB) applications
Gateway Termination to analog telephones/lines
Services and Features
Caller ID and Call Waiting Caller ID
ADSI Telephones
Loopstart Signaling Support
Technical Specifications
Up to 8 ports through a combination of FXS400 and FXO400 modules
Full-length analog card
Up to 2 quad FXS or FXO modules
RJ45 connector
32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
Autosense compatibility with 5 V and 3.3 V PCI busses compatible
FPGA design, upgradeable firmware onsite
Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
Size: 5.3 in*4.2 in*0.6 in
Weight: 0.18 lb
RoHS compliant
Certificates: CE and FCC

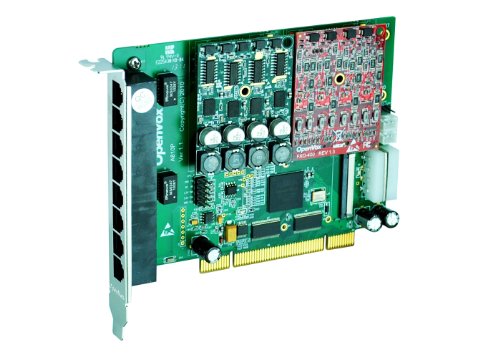

The pictures show A810P with 1 FXS (green) and 1 FXO (red) modules installed. This is a BASE Card, and requires at least one Quad-FXS or Quad-FXO and one RJ-45 to 4 RJ-11 Splitter to operate.
- A810P 8 Port Analog PCI card base board 0 FXS 0 FXO
- Up to 8 ports through a combination of FXS400 and FXO400 modules
- Up to 2 quad FXS or FXO modules
- Autosense compatibility with 5 V and 3.3 V PCI busses compatible
- Loopstart Signaling Support
